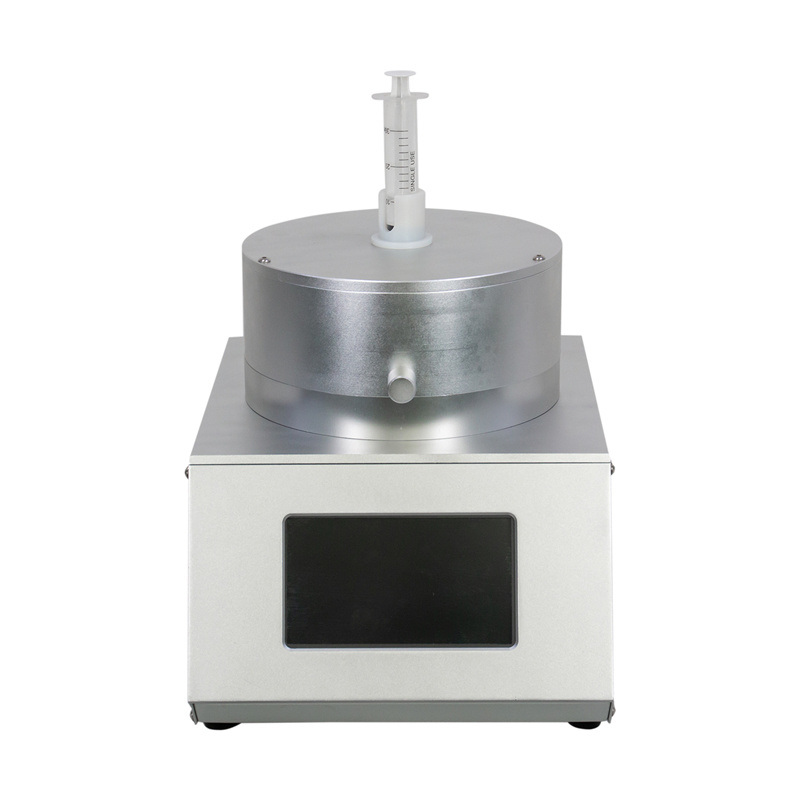

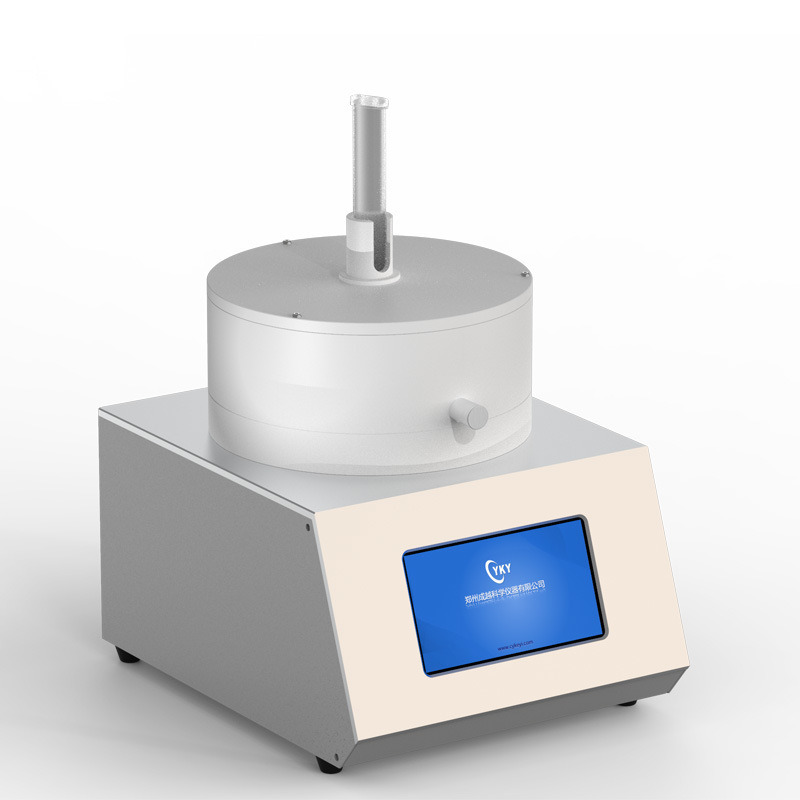

Brief Introduction of Anticorrosive heating type spin coater:
This spin coater adopts PTFE chamber, which is beautiful and sturdy in appearance, has excellent chemical stability and strong corrosion resistance, and can be used in various occasions requiring acid and alkali resistance and organic solvents. The device adopts advanced precision motor, the maximum speed can reach 10,000rpm, which effectively guarantees the uniformity of film formation. In addition to the basic spin coating function, this product is also equipped with heating elements, which can be heated up to 200ºC, temperature controlled by an intelligent temperature control meter, accurate temperature measurement, and completely controlled temperature rise process. In addition, the instrument adopts touch screen control and can preset the coating curve, which greatly simplifies the use process and reduces the learning cost. It is very suitable for laboratory purchase.

Application of Anticorrosive heating type spin coater:
The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films. It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.

Technical parameter of Anticorrosive heating type spin coater:

Item Detail
Spin coater Supply voltage AC220V, 50Hz
Spin speed 0~10000rpm
Acceleration 100~5000rpm/s
Speed resolution 1rpm
Single step time 3000s
Substrate size Diameter ≤ 8 inches (200mm)
Chamber material PTFE
Heating temperature ≤200°C
Temperature control method AIP intelligent temperature control
Operation method 7 inches HD LCD touch screen
Dispensing method Manual dispensing, optional precision syringe pump
Coating curve 5 segments per curve, a total of 5 curves can be stored
Pumping port Φ8mm quick screw interface
Overall size 290mm×365mm×300mm
Total Weight 15kg
Exhaust system Vacuum pump Dry mechanical pump
Pumping rate 1.1L/s
Power supply AC220V 50/60Hz
