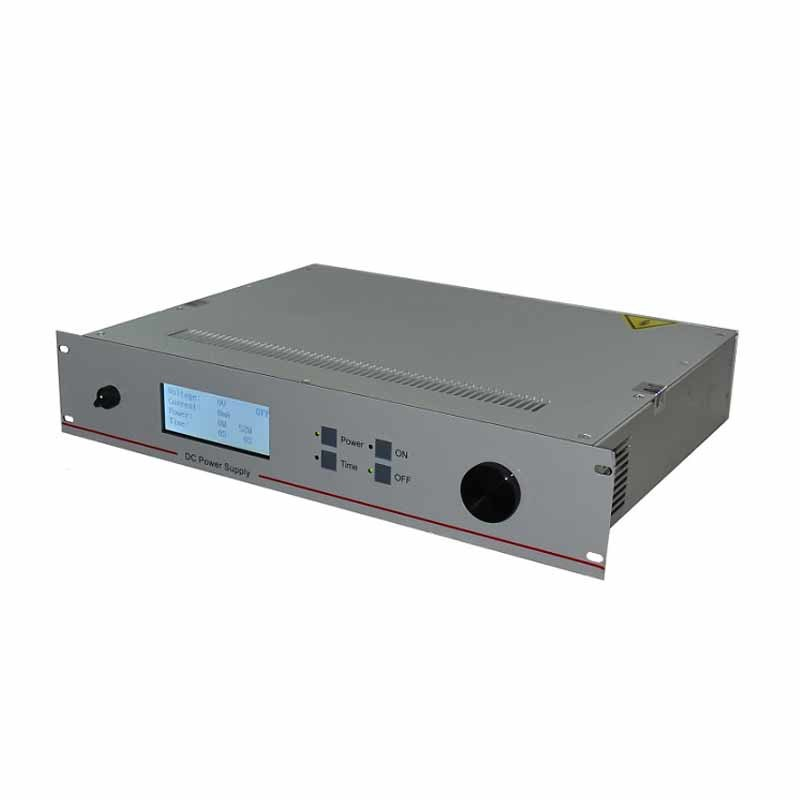

CY-DC-300-LD power supply is intended primarily for DC magnetron sputtering source. It is compact and over 90% efficient. and have low stored energy at the outlet. Special integrated circuitry enables arc suppression for arc-sensitive applications and arc control for sustained arcing applications. Front panel controls switch regulation between constant power, current, or voltage while permitting the power to be ramped to the set point.
Technical parameter of Power Supply:

Input
AC220V +/-10% or AC120V+/-10% selectable
Output
Max. Output Power: 300W
Max. Output Voltage: DC400V
Voltage Resolution: DC 1.0V
Max.output current: DC 0.8A
Current resolution: 1mA
Control Acurracy: +1%
Dimension
Case: W440mm x H85mm x D403mm
Frant Face: W440mm x H85mm
Optional Accessaries



You may order 2" High Vacuum Magnetron Sputter Source For DIY RF & DC Sputtering Coater together with DC power supply for immediate use
High Vacuum Quick Disconnect is included when you order 500W DC Sputtering power supply together with the 2" supptering source.
High Vacuum Quick Disconnect with 0.75" ID (compatible with HVMSS-SPC-2). Use this component to install the HVMSS-SPC-2 sputtering tool onto the baseplate (upto 1" thick) of a vacuum chamber with 1" diameter through-hole
