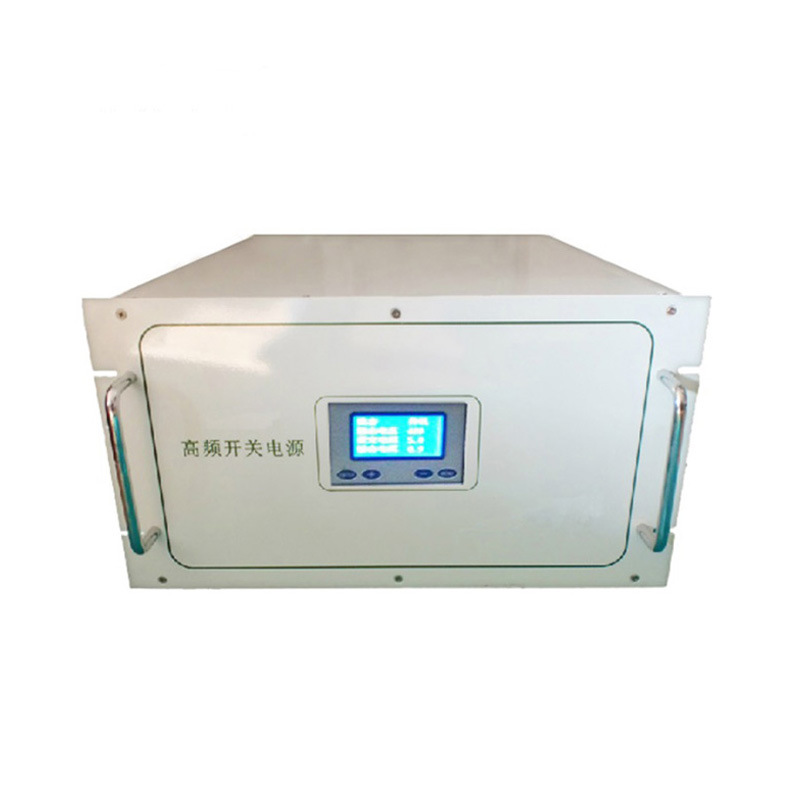

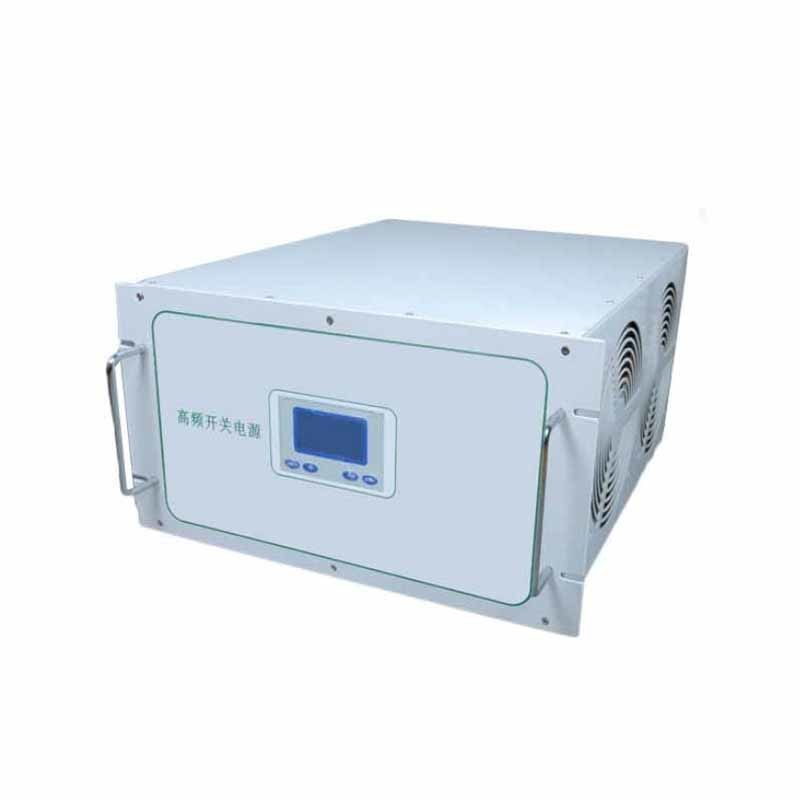

Name Middle frequency magnetron sputtering power supply
Items No. CY-WZP40L
Type CNC intelligence power supply
Input Voltage AC380±10%V
Output Power 40KW
Current 0A~48A
Voltage Work voltage 200~800V, no-load>1KV
Frequency 40khz
Wave form Quasi-sine-wave
Mode Custom constant voltage, constant current, constant power
Regulation Precision ≤1%
Efficiency ≥90%
Power Factor cosΦ≥0.9
Display Mode Chinese-English LCD display
Display Content Working state, output voltage, output current, set value
Output Protection Output overvoltage, output overcurrent and output offset
Input Protection Output overvoltage, Output undervoltage, input overcurrent, open phase
Safety Protection Grounding protection, leakage protection, external control protection, lightning protection, overheating
Insulation Class B
Protect Grade IP20
Protection Response Time 1uS
Temperature 0~35ºC
Humidity ≤80%
Cooling mode Water-cooling
Dimensions 480*230*550(mm)
