Product description of Induction Heater

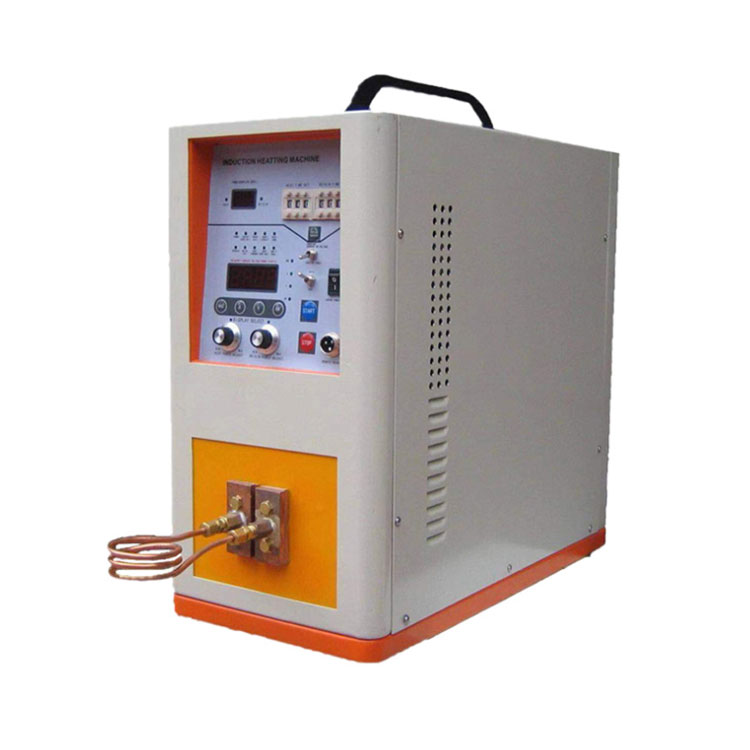

CY-SP-25BD induction heater features the latest inverting technology so as to make itself light and convenient. Its 25KW Induction Heater is designed for the material research lab to quickly melt and perform heat treating to metallic materials.

Technical specifications of Induction Heater
Induction Heater

Working Voltage: 220V AC, 50/ 60Hz, Three Phases (380VAC, 3phase available upon request)
Working Current: 10~86 Amps (100A breaker required)
Max. Input Power: 25 KW
Output Frequency: 30 - 80 kHz
Duty Cycle: 100%
Induction Coil: 150mm(OD) x 140mm(ID) x 65mm(H)

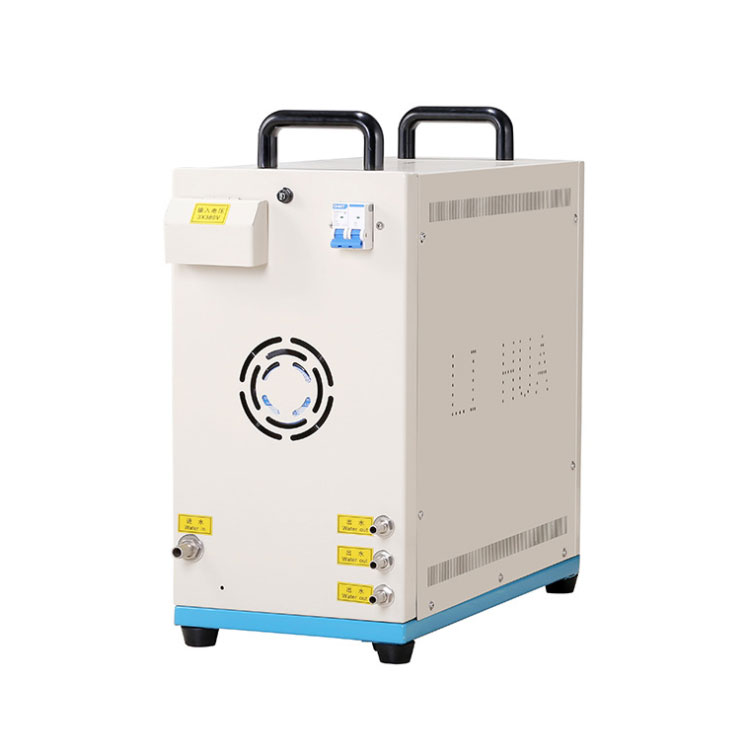

Air Cooling: Rear Fan
Protection: Automatic water pressure, over temperature, and overpower protection
Refractory Assembling: Complete refractory assembling made of alumina, including bottom crucible support, crucible holder, and cover
Timer Control
Automatic timer control or Manual control selectable

Manual Control: by Foot Pedal
Automatic Heating Time: 1-99 Seconds
Automatic Dwell Time: 1-99 Seconds
Automatic Cooling Time: 1-99 Seconds
Temp. Controller & Thermocouple (optional)

Precision digital temperature controller with Automatic PID tuning
30 segments programmable for controlling heating and cooling rate as well as dwell time.
Overheating & thermocouple failure protection.
+/- 3 ºC temperature accuracy.
+/- 3 ºC temperature accuracy.
Thermocouple: C type ( 1/4"x10"L ) ( pls click here to order spare as consumable )
Continuous Working Temp. Range: 1000ºC~1900ºC
Max. Working Temperature: 2000ºC (for less than an hour)
Max. Heating Rate:
4ºC/second (1000ºC-1200ºC)
3ºC/second (1200ºC~1500ºC)
1ºC~2ºC/second (1500ºC~2000ºC)
Water Cooling

Flowrate: >10 L/Min
Pressure: ≥0.2 MPa (29 Psi)
Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Protection: Overpressure and over temperature switch
Water Chiller (optional)
Temperature range: 5 - 30°C
Water Flow Rate: > 58 L/m
Note: It is recommended to use a specific coolant to get the best performance.
Warranty
One year limited warranty with lifetime support
Consumable parts such as processing tube, thermocouple, refractory liners, o-rings, and heating coil are not covered by the warranty
