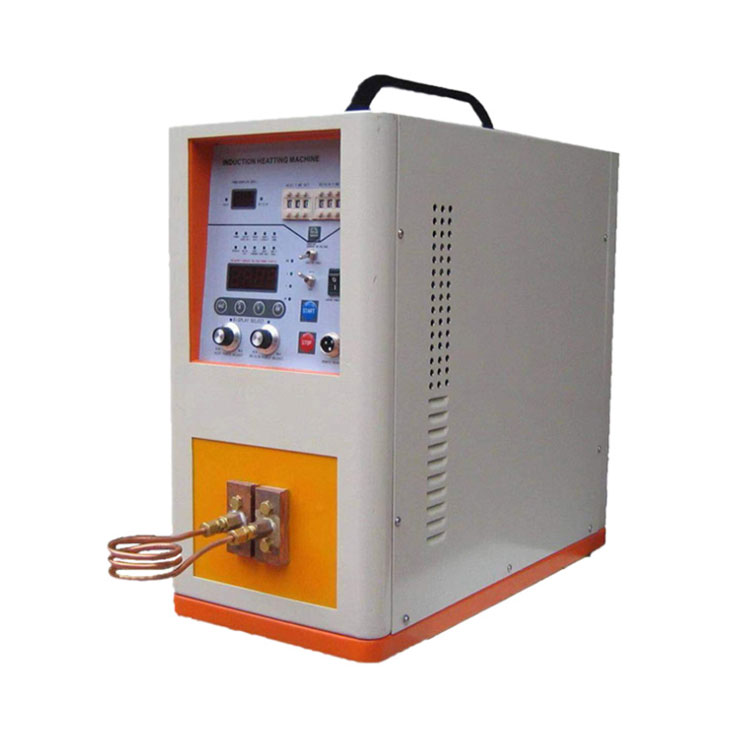

CY-SP-7AB Dual Station 7KW Induction Heater is designed for material research lab to quickly melt and perform heat treating to metallic materials up to 1kg. The 2m long power cable allows heating station and the control station being located up to 2m from each other for operation safety.
Working Voltage 208-240V AC, 50/60 Hz, Single Phase
Max. Input Current 34 Amp (Min. 40A breaker required)
Power cable included (It is suggested to use NEMA L6-50P twist-lock plug with 10AWG power cable)
Output Frequency 30-80 kHz
Heating Current 200-600 Amp
Max. Input Power 7 KW
Duty Cycle 80%
Max. Distance Between Heater and Controller 2m
Max. Sample Weight 1 kg
Option Control Station
Automatic timer control or Manual control selectable
oManual Control: by Foot Pedal
oAutomatic Heating Time: 1-99 Seconds
oAutomatic Dwell Time: 1-99 Seconds
oAutomatic Colling Time: 1-99 Seconds
One Portis is built in to connect to the temperature controller and thermal couple, which can control temperature automatically via the optional control unit. Please click the picture below to order at extra cost.

Air Cooling Rear Fan
Water Cooling
Flowrate: 2~5 L/Min
Pressure: 0.2 MPa (29 Psi)
Protection: Over-pressure and over temperature switch
Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Please click the left picture to order separately at extra cost

Induction Coil & Accessories
Two coils with the following dimensions are included:
Coil #1: 76.8mm(OD) x 66.0mm(ID) x 40mm(H)
Coil #2: 82.5mm(OD) x 65.5mm(ID) x 73.5mm(H)
Foot Pedal with Cable and water connector are included
Display Digital display shows output power and current
Product Dimensions Control Station: 18" x 8" x 17"
Heating Station: 12" x 8" x 13"
Warranty One Year limited warranty with lifetime support
Net Weight 25 kg (55 lbs)
Shipping Dimensions 40"(L) x 30"(W) x 30"(H)
Shipping Weight (Pounds) 45 kg (100 lbs)
