Introduction of Mini Arc Melting Furnace:

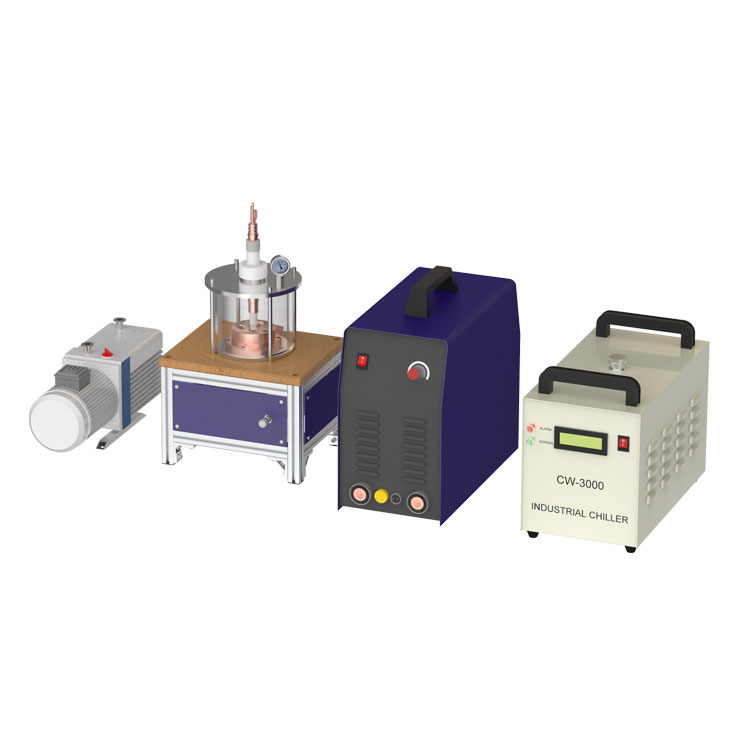

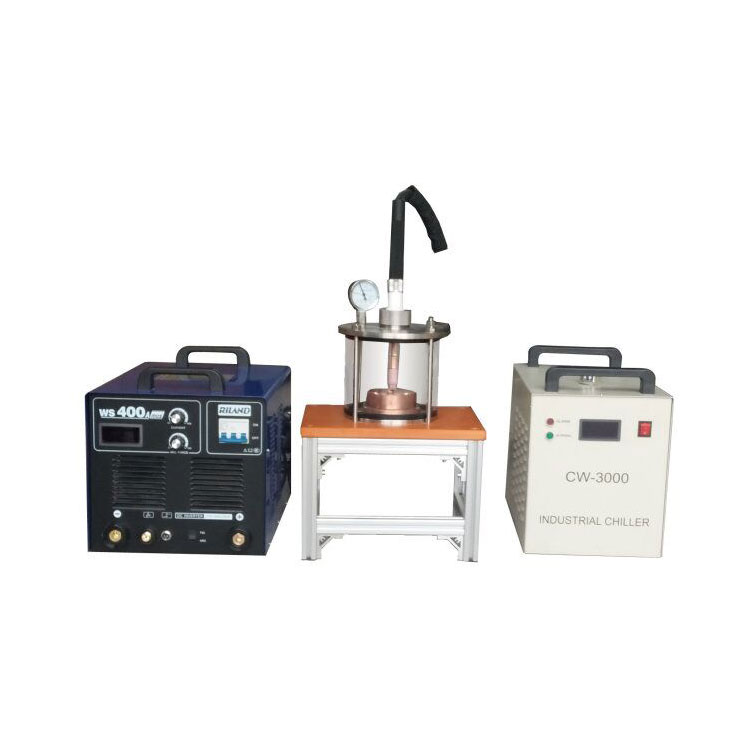

Mini Arc Melting Furnace (Quartz chamber) is a cheap and small vacuum arc melting furnace with tungsten electrode and water-cooled copper crucible. The melting temperature of the equipment can exceed 3000ºC, and then the temperature is quickly reduced. The transparent quartz chamber can be used to observe the melting of the sample at 360 degrees. CY-MSM-130A is a high quality and inexpensive experimental tool for sample smelting, heat treatment, and the phase diagram study.
Specifications of Mini Arc Melting Furnace:
Product model CY- MSM-130A
Main features 1. Design melting sample amount <= 10 g, temperature can reach 3000 ºC.
2. Adopt transparent quartz cavity (with protective cover), which can observe the melting situation of the sample at 360 °.
3. Water-cooled copper crucible.
4. The melting gun angle can be adjusted.
5. The vacuum interface is connected with a flexible bellows to ensure tightness.
Technical parameters 1. Vacuum gauge

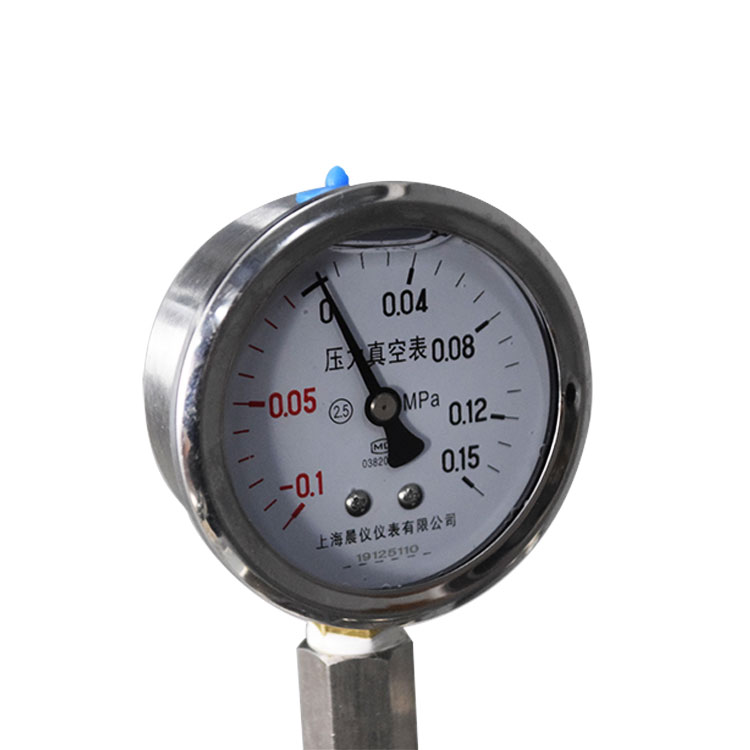

A mechanical pressure gauge is installed on the device to measure the pressure inside the chamber
Optional digital display anti-corrosion vacuum gauge
2. Arc power
Input voltage: 380VAC, three-phase
Max input current: 10A. (Requires a 40A air switch)
Output voltage / current: 22.6 V / 315A (DC)
Push button switch controls power output
3.Tungsten electrode
Equipped with a 4mm diameter tungsten electrode with water cooling on the head
Electrode gun angle adjustable for smelting multiple samples
Meltable sample amount <10 g, temperature reaches 3000 ºC
4.Crucible
Equipped with a water-cooled copper crucible with 4 work stations, each station is Φ25mm × 7mm
Copper crucibles of various sizes can be customized according to customer requirements
5. Chamber
Quartz chamber with Φ168 × 136mmH
Product specifications Furnace size
Furnace body: 500 mm L × 450 mm W × 720 mm H
Power supply: 460mm L × 306mm W × 305mm H

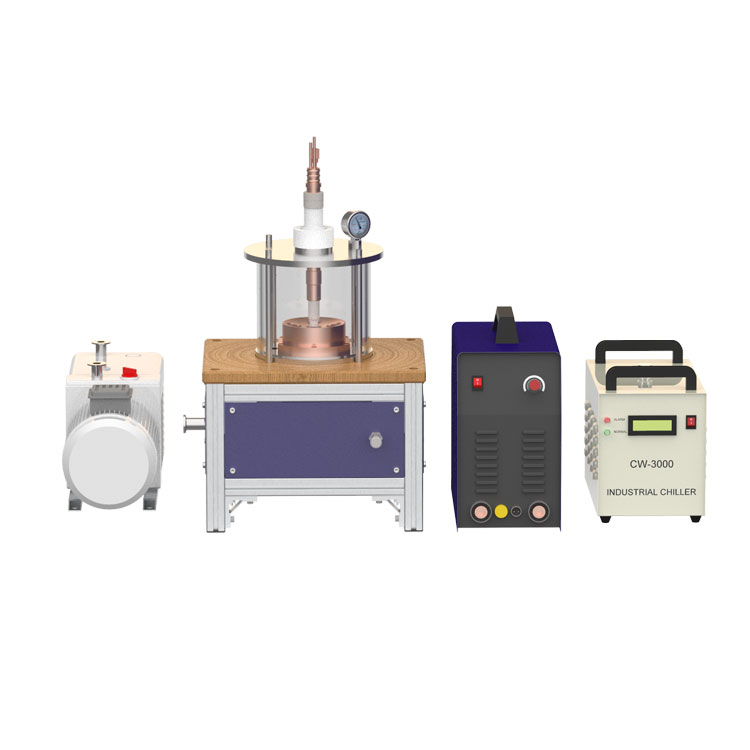

Standard accessories 1 set Melting furnace host
1 Argon arc welder
1 Chiller
1 furnace frame
1 Vacuum pump
Optional accessories Suction Casting Parts (Please contact our company when you need to buy)
Application considerations 1.Vacuum pump (optional)
Optional various vacuum pumps
Vacuum degree: 10 ^ -2 torr (mechanical pump)
10 ^ -5 torr (molecular pump system)
2.Water chiller (optional)
When the equipment is running, cooling water is needed to cool the arc gun and the copper crucible. Optional circulating water chiller CY-5000 can be purchased from our company (water pipe specifications are 12mm outer diameter x 8mm inner diameter)
