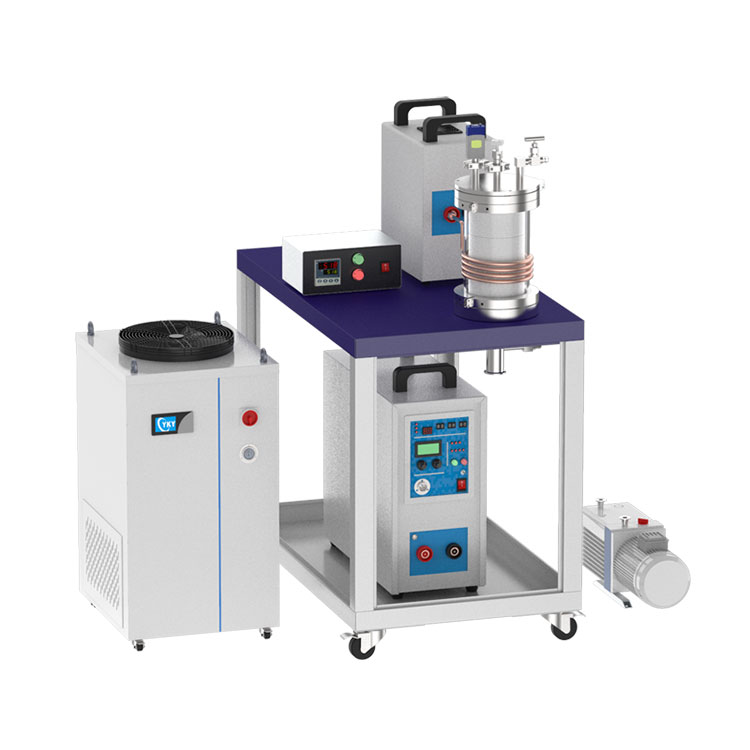

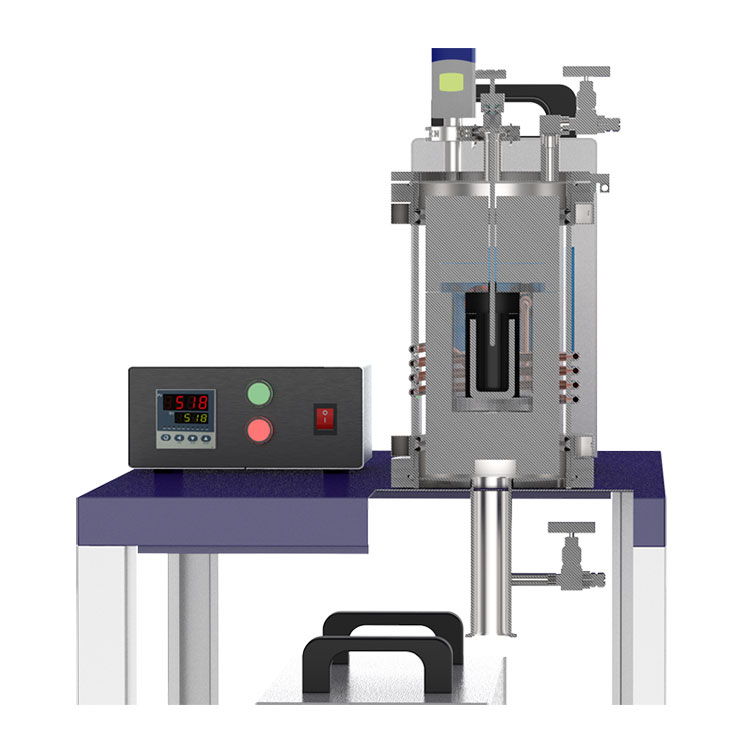

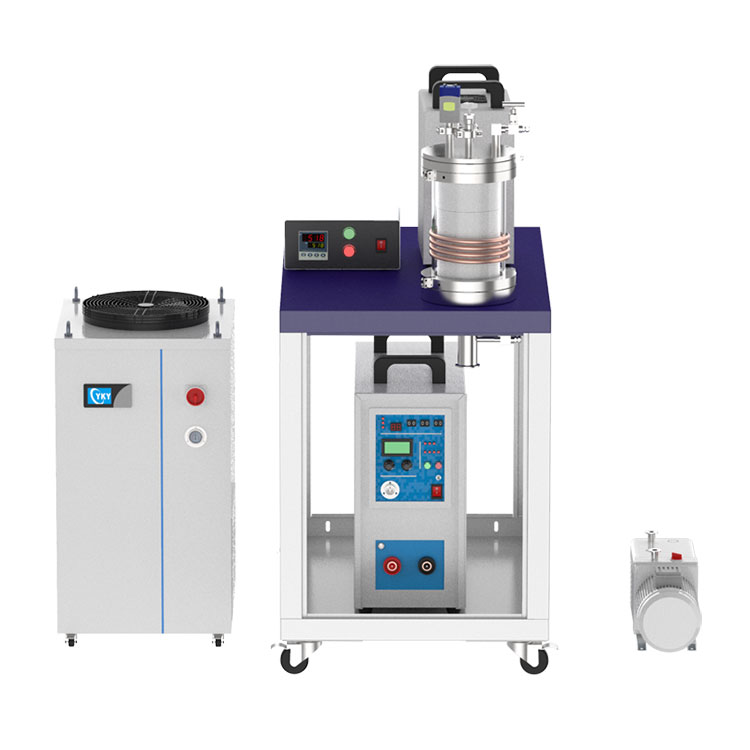

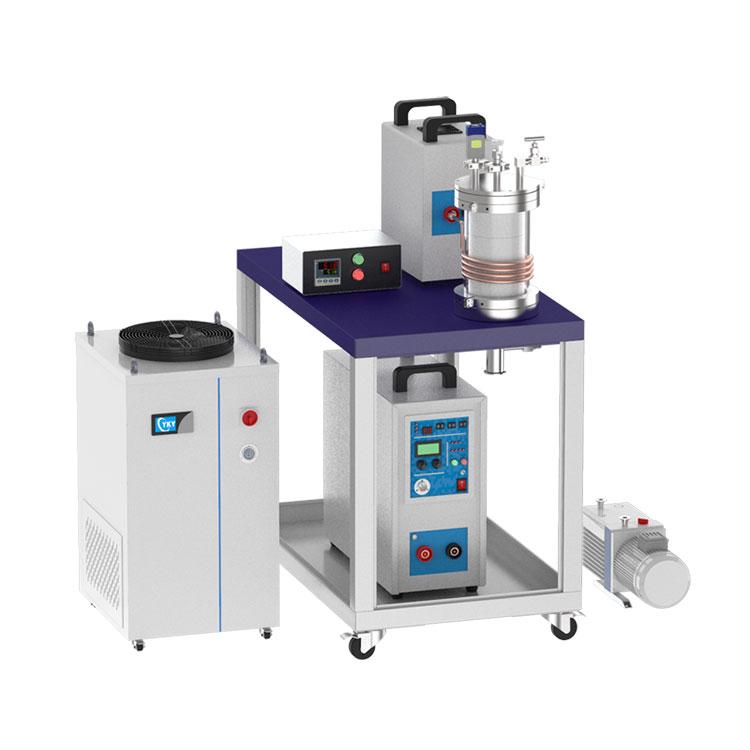

Description of Induction melting furnace
The vacuum induction melting furnace CY-15VIMF is suitable for the rapid melting of a small amount of metal samples in the laboratories of colleges and universities, and it is an ideal tool for the development of new metal materials.

Specification of Induction melting furnace:
Product model Vacuum induction melting furnaceCY-15VIMF
Main
features 1. Complete fireproof device, including the holder at the bottom of the crucible, the holder and the lid of the crucible, and made of alumina.
2, water pressure and temperature automatic protection, output power over the power supply automatic protection.
Technical
parameters SP-15A electric induction heater
1. Power supply: 220 V 50-60 Hz 70 A
2. Output power: 2-15KW
3. Output frequency: 30-110 KHz
4. Duty cycle: 80%
5. Automatic heating time: 1-99s
6. Automatic cooling time: 1-99s
7. Induction coil: outer diameter Φ70mm, inner diameter Φ65mm, height 80mm
8. Quartz tube: outer diameter Φ60mm, inner diameter 57 mm, length 250 mm
9. Vacuum flange: KF25 joint
10. Quartz crucible: outer diameter Φ58mm, inner diameter Φ36mm, height 78mm, capacity 79mL
11. Size: 470mm × 305mm × 435mm

Cold water machine
1. Temperature: 5-35ºC
2. Water flow rate: 4L/min
3. Water tank: 4L
4. Size: 460mm×220mm×711mm

Vacuum pump
1. Power: 550W
2. Ratio: 226 L / min

Mobile furnace frame
1. Size: 800mm×600mm×597mm
Product
specification Weight: 105kg
