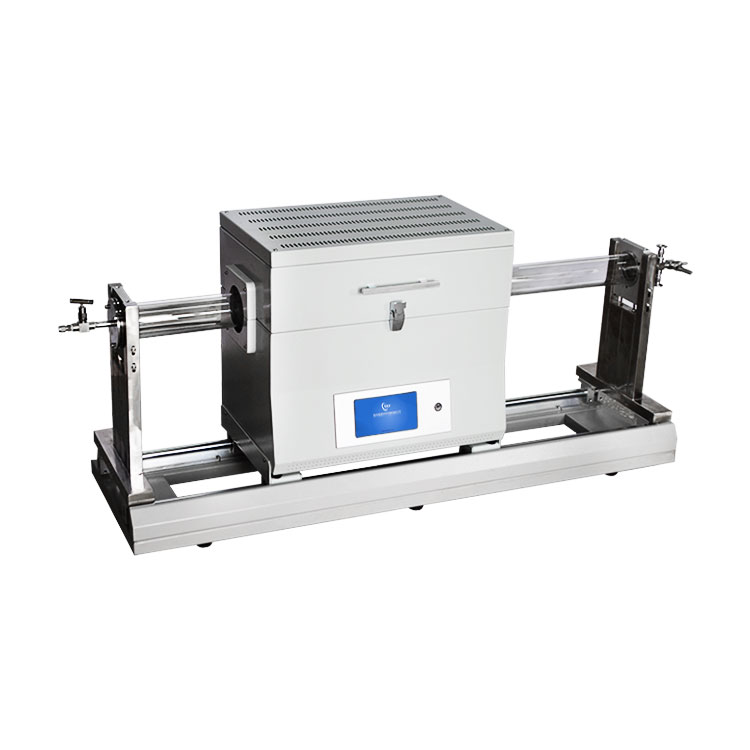

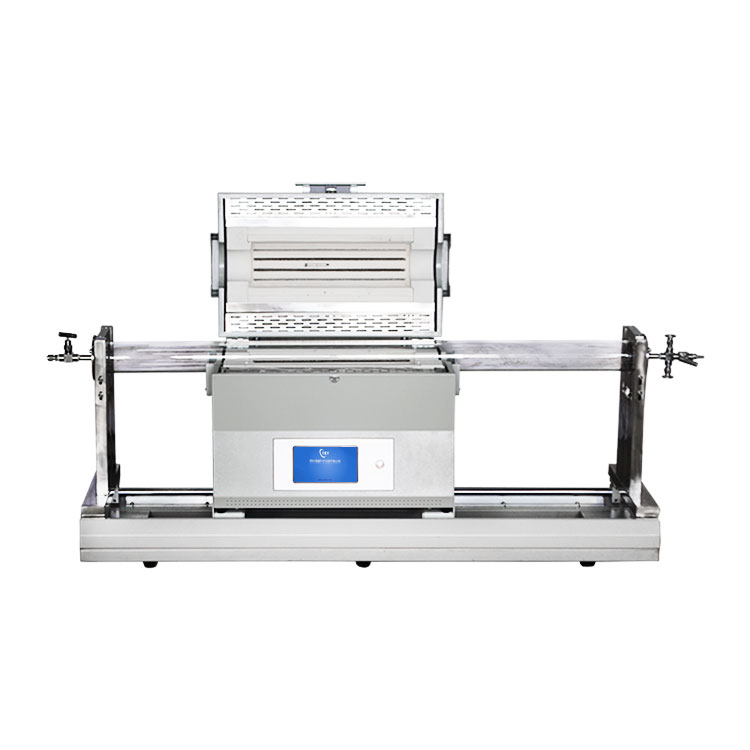

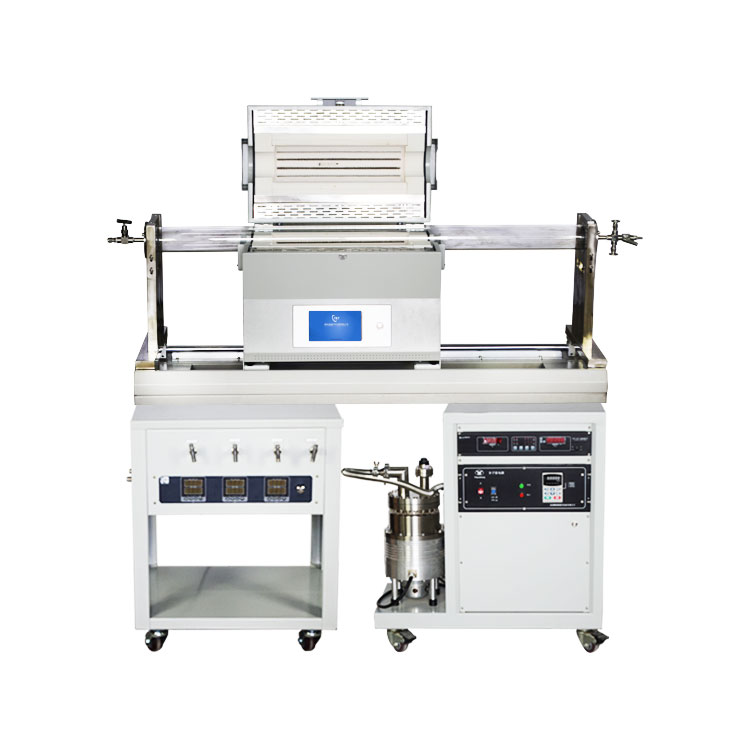

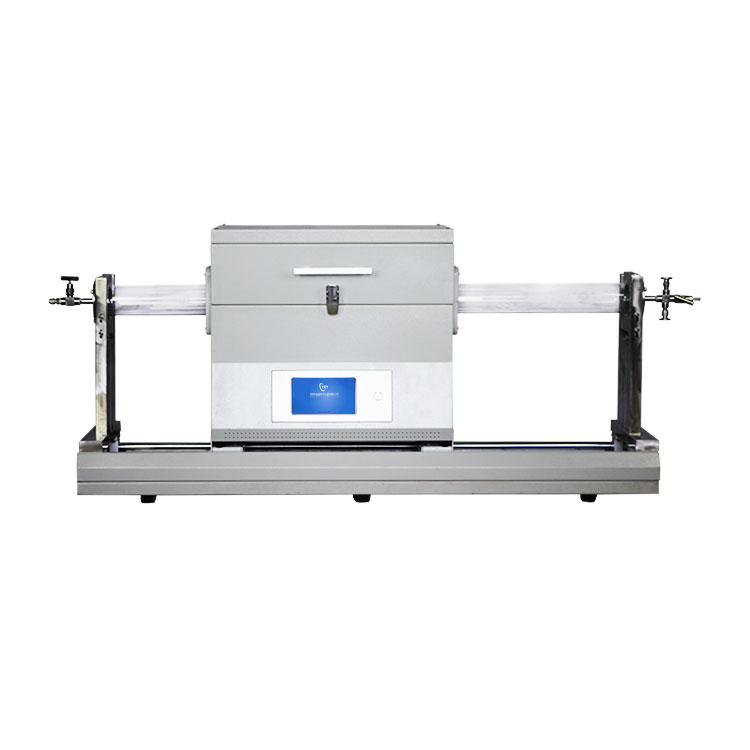

1200ºC high-vacuum heating and annealing atmosphere tube furnace
Max power 4KW Heating zone Single zone 440mm Working temperature ≤1200ºC Temperature control accuracy ±1ºC Temperature control method AI-PID 30-stage process curve, can store multiple Tube material High purity quartz Tube size φ80mm I.D x 1000mm L Sealing mode Stainless steel vacuum flange Vacuum me...
Max power 4KW
Heating zone Single zone 440mm
Working temperature ≤1200ºC
Temperature control accuracy ±1ºC
Temperature control method AI-PID 30-stage process curve, can store multiple
Tube material High purity quartz
Tube size φ80mm I.D x 1000mm L
Sealing mode Stainless steel vacuum flange
Vacuum measurement Mechanical pressure gauge
Working gas Non-corrosive gases such as hydrogen, nitrogen, argon, and oxygen

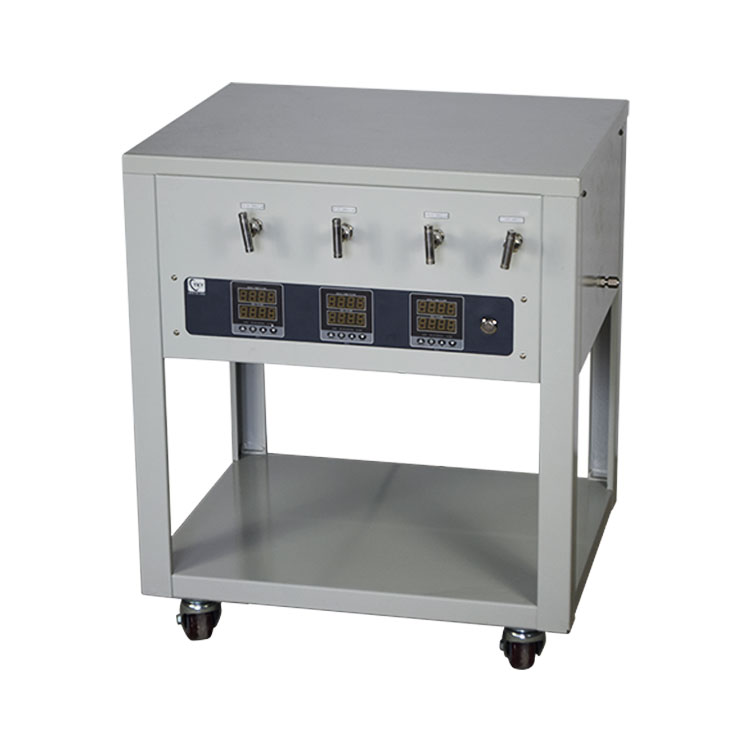

Three-way mass flowmeter
Item Detail
Valve type Stainless steel needle valve
Gas channels Three-way
Pressure range 0.05~0.3MPa
Range 0~100 SCCM (H2)
0~200 SCCM(Ar)
0~500 SCCM(CH4)
Flow control range ±1.5%
Mixing tank volume 750mL
Gas path material 304 stainless steel
Pipe interface 6.35mm Bite type joint
Power supply AC220V 50Hz
Heating zone Single zone 440mm
Working temperature ≤1200ºC
Temperature control accuracy ±1ºC
Temperature control method AI-PID 30-stage process curve, can store multiple
Tube material High purity quartz
Tube size φ80mm I.D x 1000mm L
Sealing mode Stainless steel vacuum flange
Vacuum measurement Mechanical pressure gauge
Working gas Non-corrosive gases such as hydrogen, nitrogen, argon, and oxygen
Three-way mass flowmeter
Item Detail
Valve type Stainless steel needle valve
Gas channels Three-way
Pressure range 0.05~0.3MPa
Range 0~100 SCCM (H2)
0~200 SCCM(Ar)
0~500 SCCM(CH4)
Flow control range ±1.5%
Mixing tank volume 750mL
Gas path material 304 stainless steel
Pipe interface 6.35mm Bite type joint
Power supply AC220V 50Hz
| Attribute name | Attribute value |
|---|---|
| Product Features | |
| Measurement method | Vacuum gauge, Temperature controller |
| Standards | According to customer requirements |
| Installation, Training and Setting-up | Video technical support, Online technical support, Product Manual |
| Performance | multi-function, Perfect process, wide application |
| Color | Silver gray |
| Warranty | 1Year |
| After Sale Services | lifetime |
