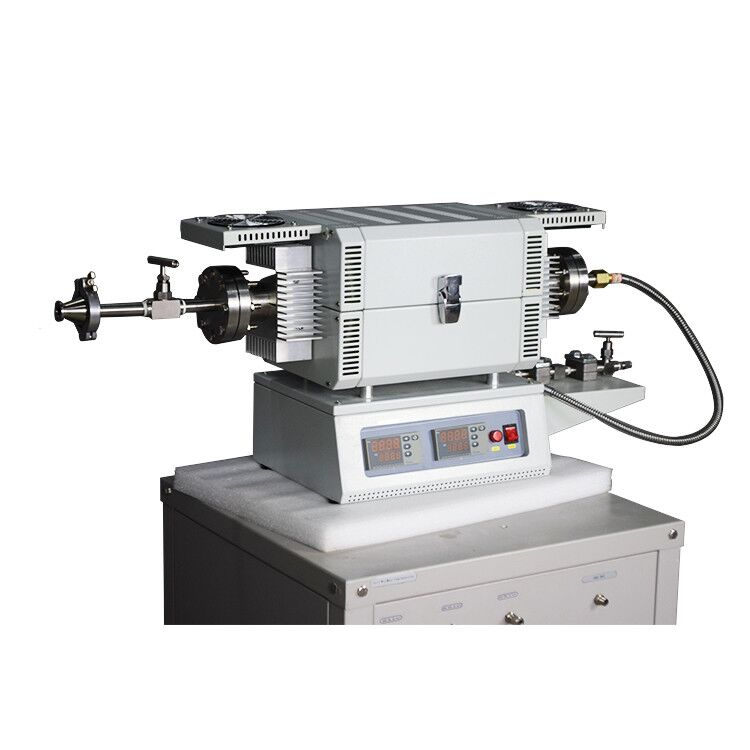

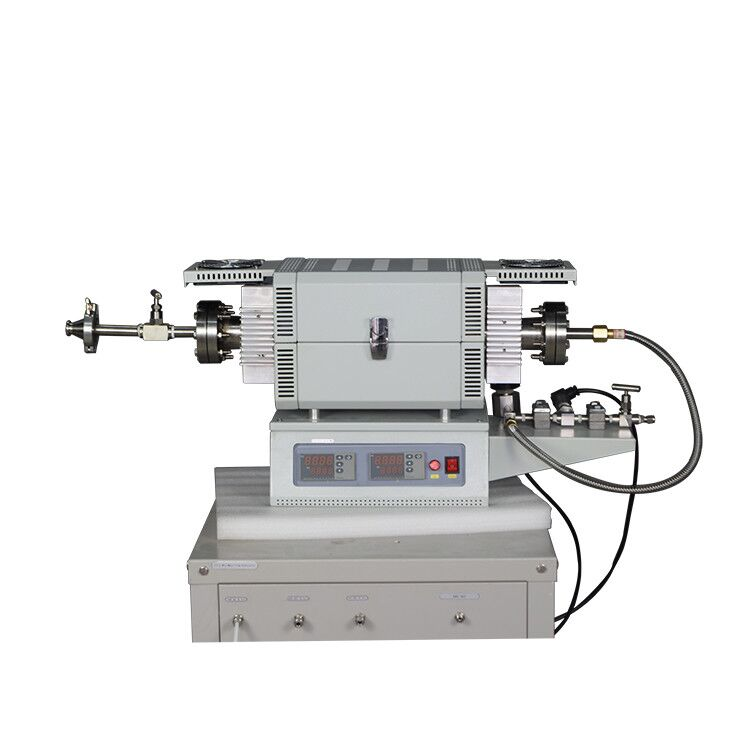

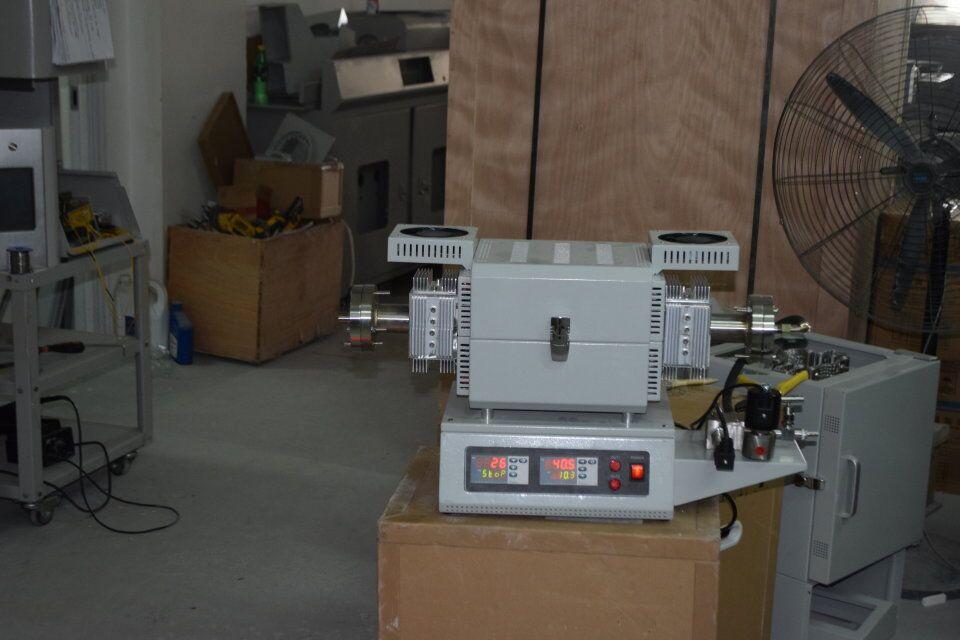

Application of Laboratory High Temperature High Pressure Tube Furnace:
It is suitable for scientific research in laboratories that require high temperature and high pressure environment and precise control of high temperature and high pressure conditions. It can be widely used in the synthesis of new materials such as piezoelectric ceramics, ferroelectric superconducting materials, magnetic materials, superhard materials, and rapid sintering of materials.
Tube Stainless steel tube

Tube size:OD 60mmx Length 600 (mm)
Working Pressure vs. Working Temperature 200 Bar max. at 650°C140 Bar max. at 800°C80 Bar max. at 900°C40 Bar max. at 1000°C2.5 Bar max. at 1100°CNever heat up above 1200°C
Pressure Measurement Range 0~15Mpa
Max. Heating Temperature without Loading 1100°C
Working Gases Inert gas, hydrogen and oxygen
Heating Temperature 1100°C max.for < 1hr

1000C for continuous
Heating Rate ≤20°C/min
Heating Element Fe-Cr-Al Alloy doped by Mo
Heating Zone 200mm
Temp. Control PID control method with over-temp protection Temperature stability: ±1°C Touch screen controller with LCD display
Positive Pressure Sensor Installed in high pressure flange
PC control Yes
Pressure Alarm System Upper limit and lower limit control method

Alarm strobe and warning whistle
Voltage AC 220V 50/60Hz
Power 6 KW

(20A breaker required)
