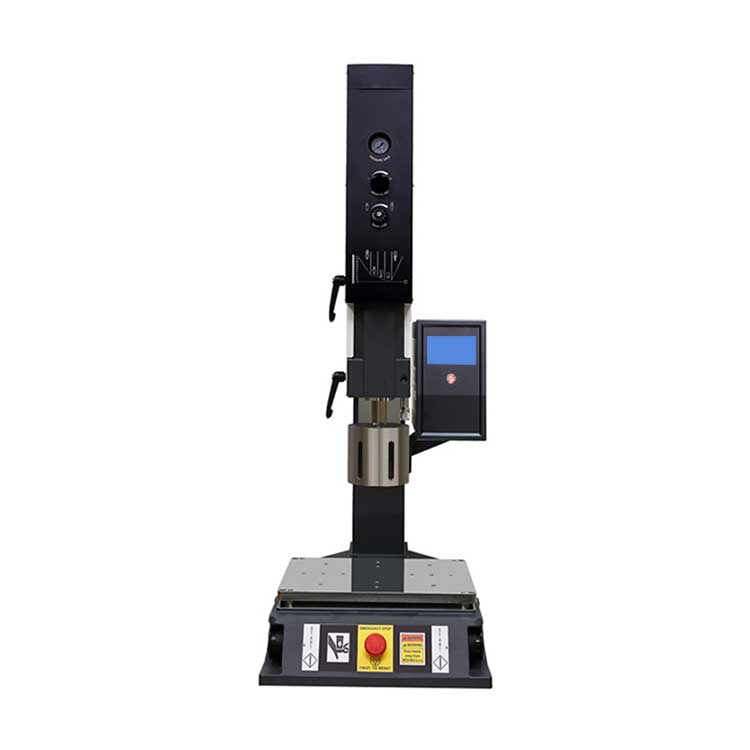

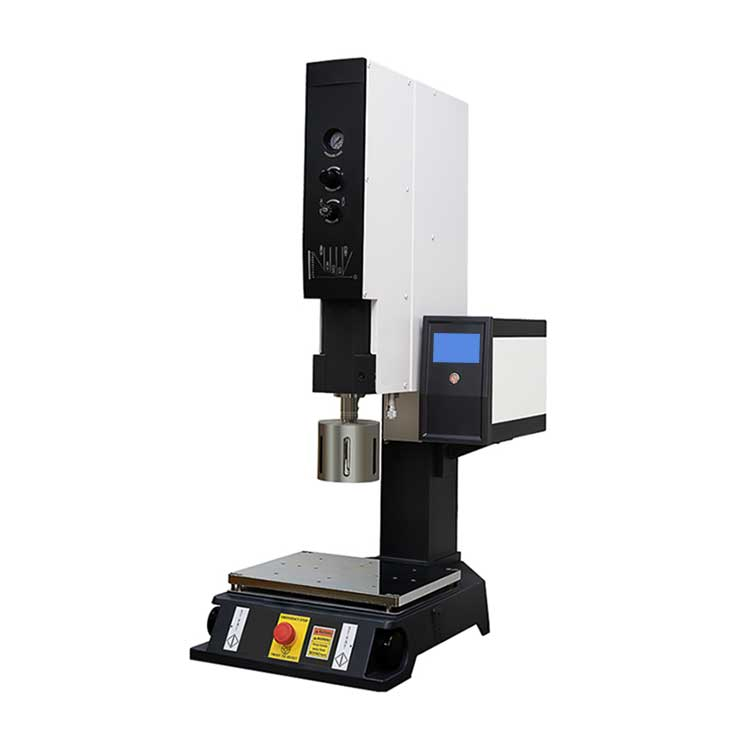

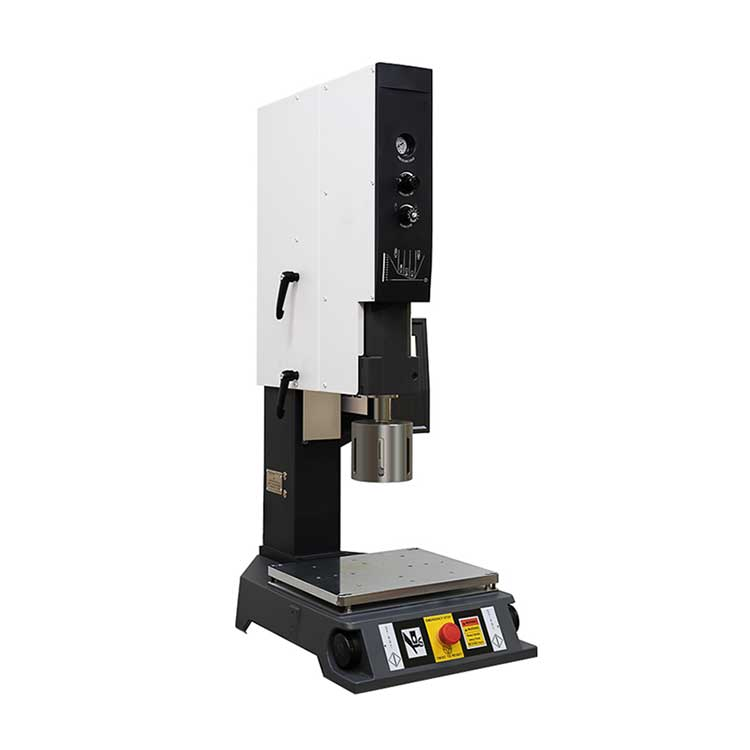

35K High-End Intelligent Ultrasonic Welder for Welding High-Precision Electronic Components
Introduction of 35K high-end intelligent ultrasonic welder: The 35K intelligent ultrasonic wave has higher precision and more stable performance, which effectively solves the problems of easy breakdown and easy damage to internal chips existing in welding high-precision electronic originals. The pro...
Introduction of 35K high-end intelligent ultrasonic welder:
The 35K intelligent ultrasonic wave has higher precision and more stable performance, which effectively solves the problems of easy breakdown and easy damage to internal chips existing in welding high-precision electronic originals. The products after welding molding are not only beautiful in appearance, but also the internal structure will not be damaged, greatly reducing the defect rate.
Technical parameters of 35K high-end intelligent ultrasonic welder:
Model benchmark version, aggressive version, high precision version
Output power 1000 W,1200 W,1500 W,1800W
Fuselage appearance size L790mm x W446mm x H(1068-1318)mm
Net weight of fuselage 110Kg
Clamping height 50mm-350mm
Welding stroke 40KHZ Φ50mm 40mmx70mm 35KHZ Φ60mm 50mmx90mm
Horizontal adjustment board L300mm W380mm
Welding stroke 100mm
Operating air pressure 0.15-0.7MPa
z axis accuracy control ±0.01mm
Energy transducer MS 40kHz 35kHz
Transducer coligo system Vortex cooler
Input voltage 220VAC
Interface manipulation Color touch screen
The 35K intelligent ultrasonic wave has higher precision and more stable performance, which effectively solves the problems of easy breakdown and easy damage to internal chips existing in welding high-precision electronic originals. The products after welding molding are not only beautiful in appearance, but also the internal structure will not be damaged, greatly reducing the defect rate.
Technical parameters of 35K high-end intelligent ultrasonic welder:
Model benchmark version, aggressive version, high precision version
Output power 1000 W,1200 W,1500 W,1800W
Fuselage appearance size L790mm x W446mm x H(1068-1318)mm
Net weight of fuselage 110Kg
Clamping height 50mm-350mm
Welding stroke 40KHZ Φ50mm 40mmx70mm 35KHZ Φ60mm 50mmx90mm
Horizontal adjustment board L300mm W380mm
Welding stroke 100mm
Operating air pressure 0.15-0.7MPa
z axis accuracy control ±0.01mm
Energy transducer MS 40kHz 35kHz
Transducer coligo system Vortex cooler
Input voltage 220VAC
Interface manipulation Color touch screen
| Attribute name | Attribute value |
|---|---|
| Product Features | |
| Performance | intelligent, Small volume, high-precision, High stability |
| Installation, Training and Setting-up | Ready to provide advice on installation if needed, The buyer installs with the help of the manual |
| Standards | Customized according to required standards, Customized with the best quality |
| After sales services | Lifetime |
| Color | Black, White |
| Warranty | 1 Year |
