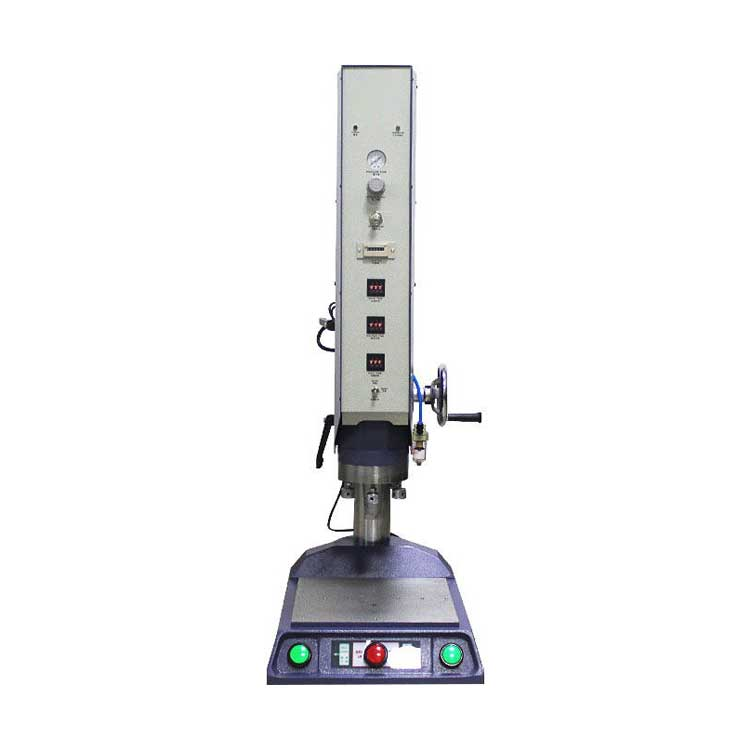

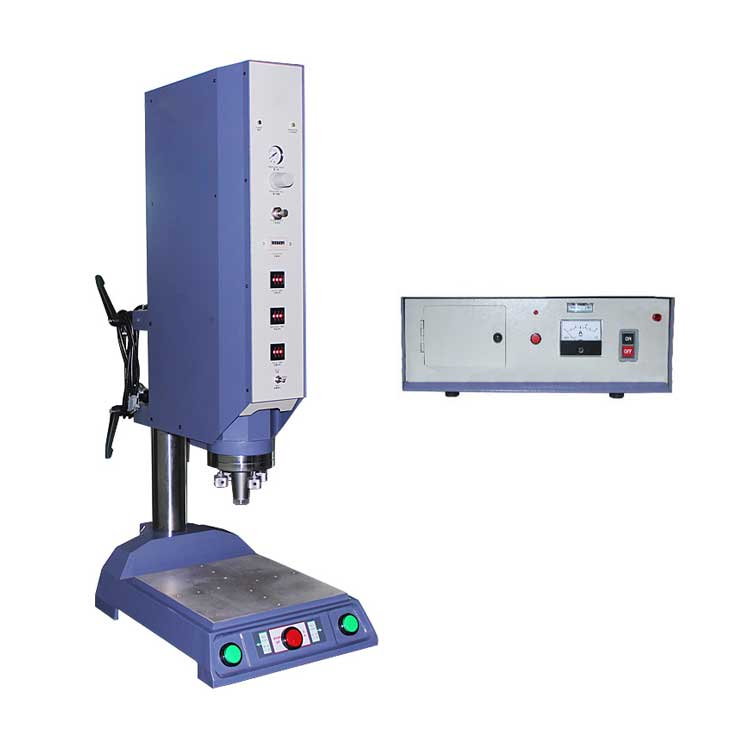

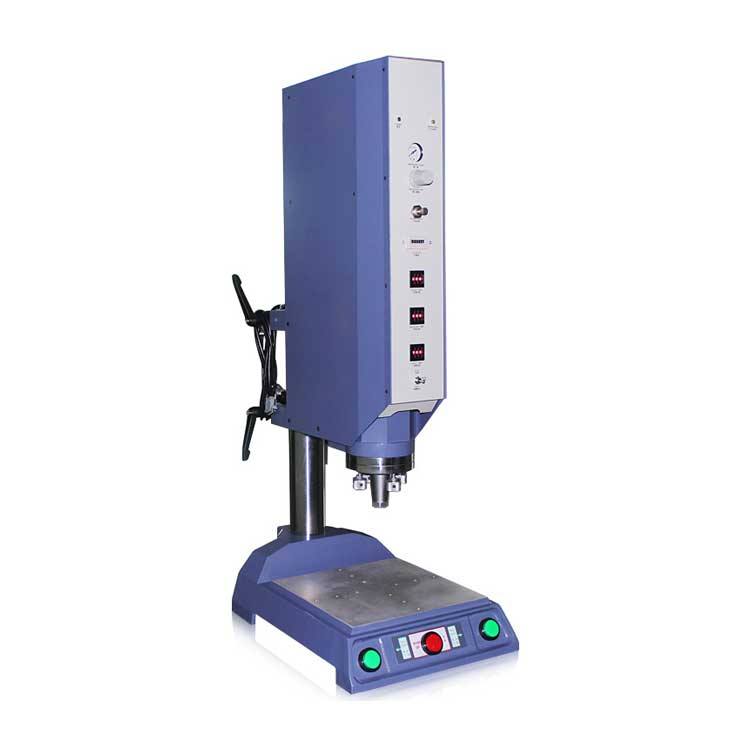

Introduction of 20kHz Ultrasonic welding machine:
There are four power options for 20K ultrasonic welding machine: 1500W, 1800W, 2200W and 2600W.
1. The standard series is the frequency-free automatic frequency control system.
2. Ultrasonic frequency 20kHz output power 1500W ~ 2600W.
3. The ultrasonic mold is designed and manufactured according to the welding workpiece.

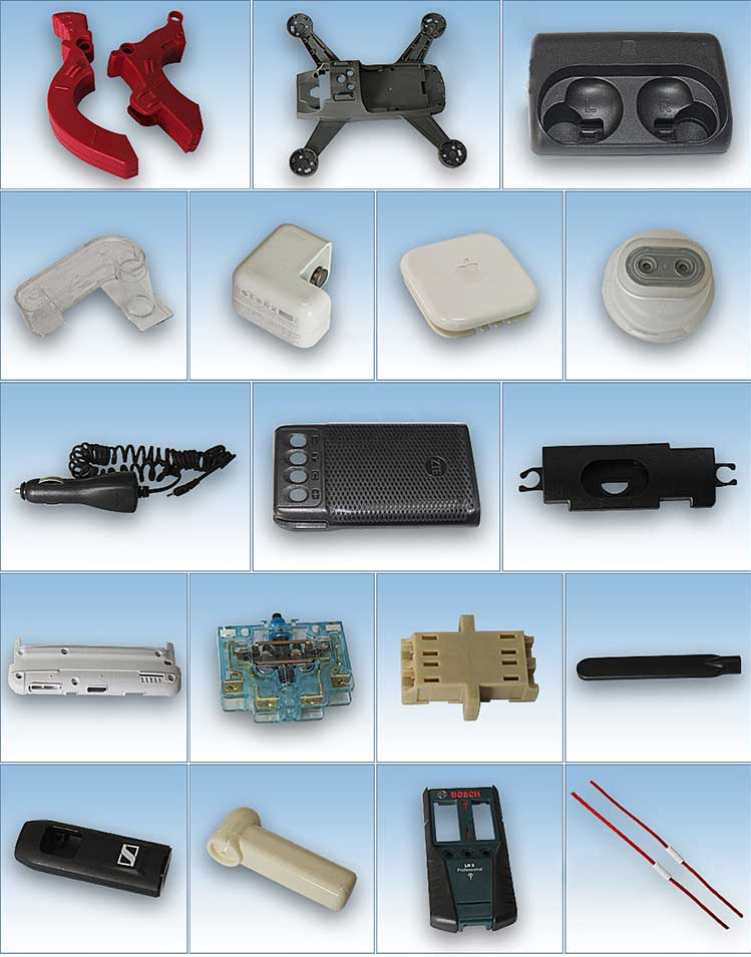

4. Equipment for thermoplastic plastic welding.

Features of 20kHz Ultrasonic welding machine:
1. Resonance under no load.
2. Output stepless adjustment (LED).
3. Double fuse protection, long service life of parts.
4. The frequency counter shows the frequency at a glance.
5. Exclusive use of MOS-FET high-tech electronic parts.
6. Welding limit system, the workpiece will not overflow glue after welding.
7. Long-term work will not affect the ultrasonic resonance frequency due to mold temperature rise.
8. Imported transducer, imported cylinder, powerful power and good stability.

Technical parameters of 20kHz Ultrasonic welding machine:
Model CY-HT- 2015 CY-HT-2018 CY-HT-2020 CY-HT-2026
Rated output power 1500W 1800W 2000W 2600W
Frequency 20 kHz 20 kHz 20 kHz 20 kHz
Rated voltage 220VAC 220VAC 220VAC 220VAC
Maximum stroke 75mm 75mm 75mm 75mm
Welding time range 0.01s-9.99s 0.01s-9.99s 0.01s-9.99s 0.01s-9.99s
Air pressure Maximum pressure 0.7MPA Maximum pressure 0.7MPA Maximum pressure 0.7MPA Maximum pressure 0.7MPA
Vibrating head cooling system air cooling air cooling air cooling air cooling
Welding area Φ170 Φ190 Φ200 Φ220
Equipment dimensions Machine size: 540X400X1050 540X400X1050 540X400X1050 540X400X1050

Machine case size: 460X475X170 460X475X170 460X475X170 460X475X170
Weight 99kg 101kg 102kg 105kg
