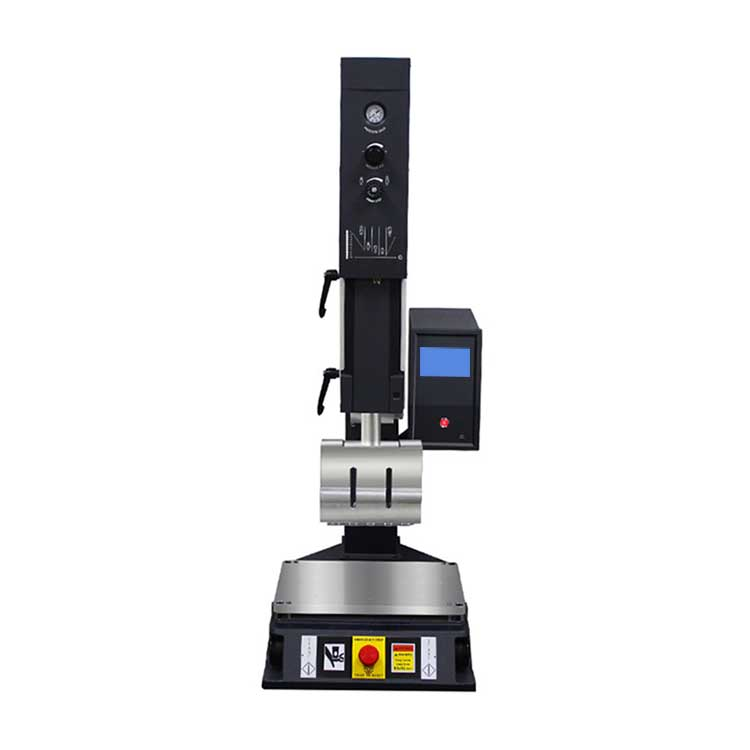

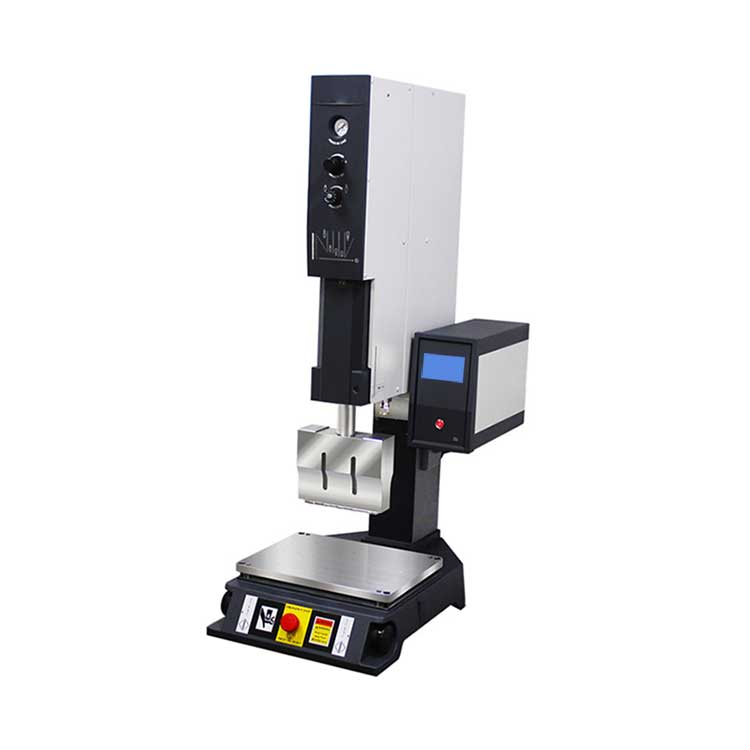

15K High-End Intelligent Ultrasonic Welding Machine for Welding of Refractory Materials and High Strength Requirements
Introduction of 15K high-end intelligent ultrasonic welding machine: It has extremely powerful amplitude output and powerful functions and are particularly suitable for welding of refractory materials, high strength requirements and welding structure that is not optimized. Technical parameters of 1...
Introduction of 15K high-end intelligent ultrasonic welding machine:
It has extremely powerful amplitude output and powerful functions and are particularly suitable for welding of refractory materials, high strength requirements and welding structure that is not optimized.
Technical parameters of 15K high-end intelligent ultrasonic welding machine:
Model CY-HTZ1526 (benchmark version) CY-HTZ1526 (aggressive version) CY-HTZ1526 (high precision version)
Output power 2600 W, 3300 W
Fuselage appearance size L790mm x W446mm x H(1100-1420)mm
Net weight of fuselage 126Kg
Clamping height 120mm-450mm
Welding stroke Φ320mm, Φ1360mmx220mm
Horizontal adjustment board L300mm W380mm
Welding stroke 100mm
Operating air pressure 0.15-0.7MPa
z axis accuracy control 0.01mm
Energy transducer MS 15kHz
Transducer cooling system Vortex cooler
Input voltage 220VAC
Interface manipulation Color touch screen
It has extremely powerful amplitude output and powerful functions and are particularly suitable for welding of refractory materials, high strength requirements and welding structure that is not optimized.
Technical parameters of 15K high-end intelligent ultrasonic welding machine:
Model CY-HTZ1526 (benchmark version) CY-HTZ1526 (aggressive version) CY-HTZ1526 (high precision version)
Output power 2600 W, 3300 W
Fuselage appearance size L790mm x W446mm x H(1100-1420)mm
Net weight of fuselage 126Kg
Clamping height 120mm-450mm
Welding stroke Φ320mm, Φ1360mmx220mm
Horizontal adjustment board L300mm W380mm
Welding stroke 100mm
Operating air pressure 0.15-0.7MPa
z axis accuracy control 0.01mm
Energy transducer MS 15kHz
Transducer cooling system Vortex cooler
Input voltage 220VAC
Interface manipulation Color touch screen
| Attribute name | Attribute value |
|---|---|
| Product Features | |
| Performance | efficient, Small volume, wide application, high-precision |
| Installation, Training and Setting-up | Ready to provide advice on installation if needed, The buyer installs with the help of the manual |
| Standards | Customized according to required standards, Customized with the best quality |
| After sales services | Lifetime |
| Color | Silver gray, Blue |
| Warranty | 1 Year |
