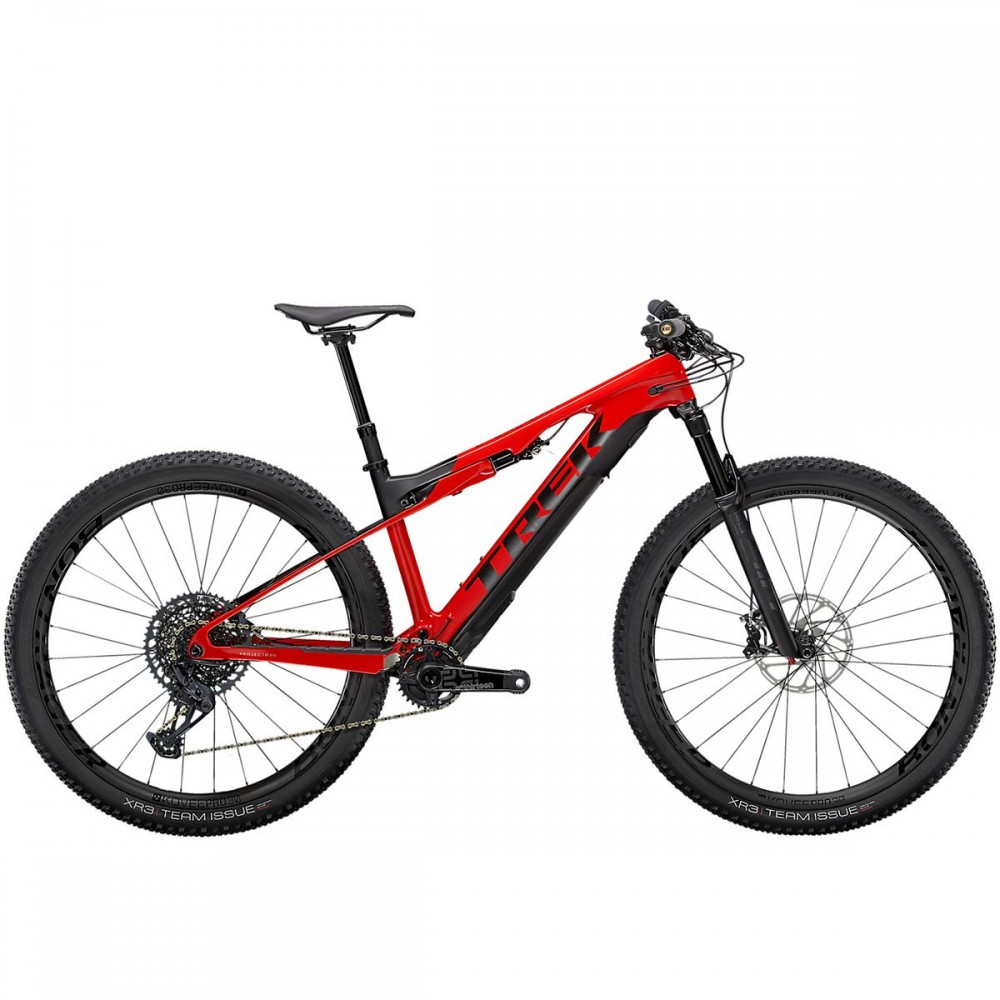

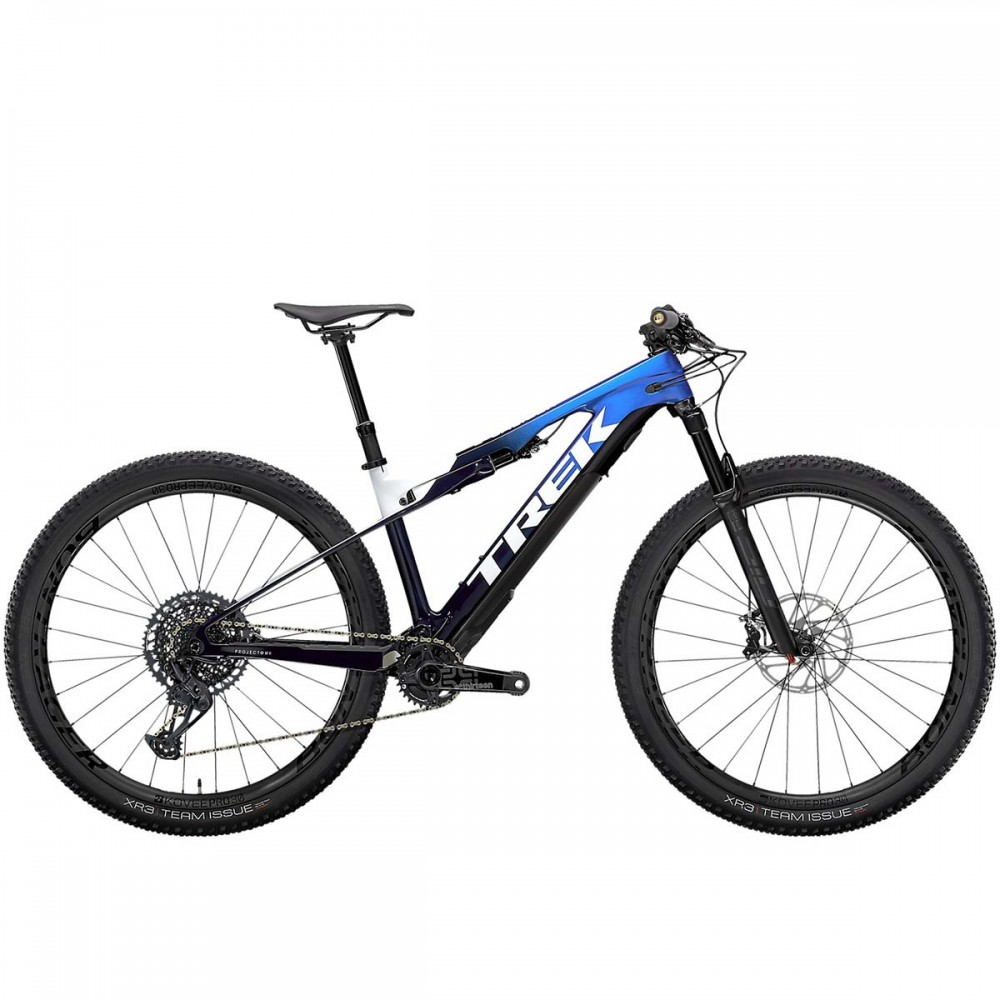

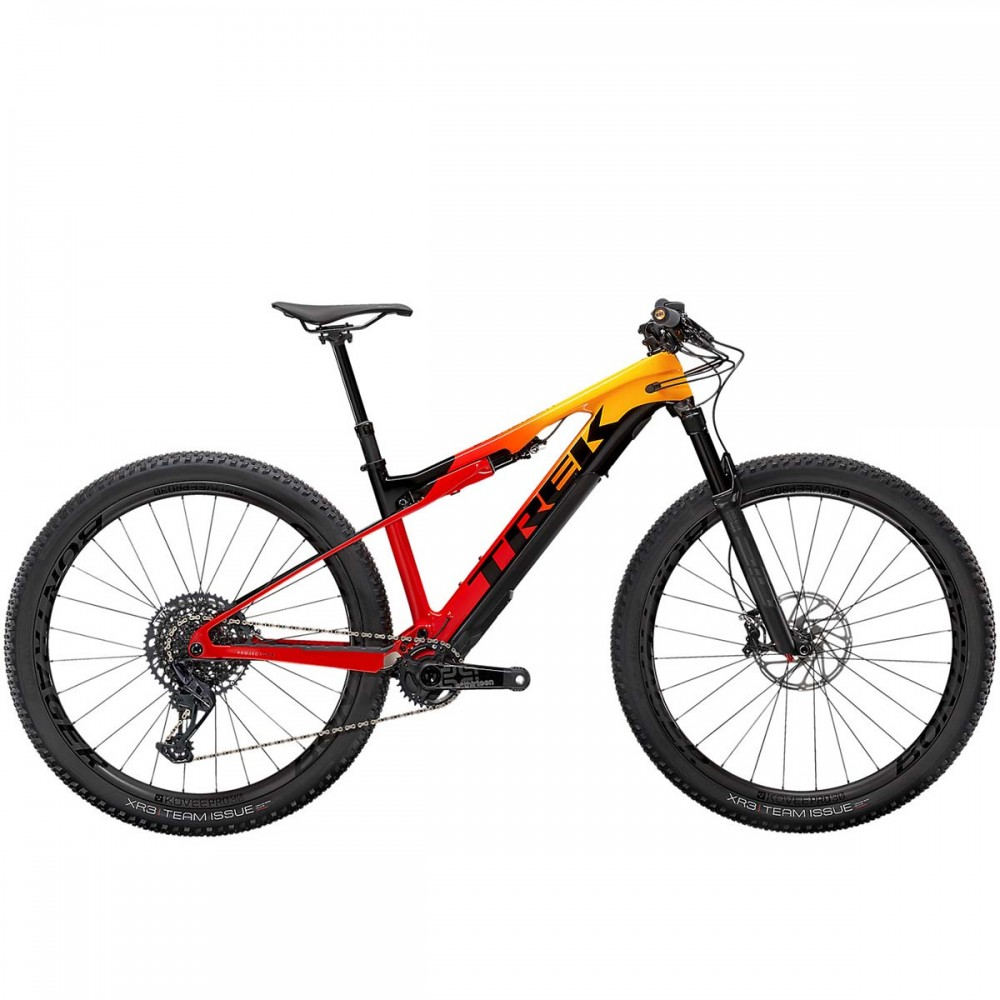

2022 Trek E-Caliber 9.8 GX Mountain Bike
Product Description 2022 TREK E-CALIBER 9.8 GX FRAME OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel FORK RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm ...
Product Description
2022 TREK E-CALIBER 9.8 GX
FRAME OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
FORK RockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
SHOCK Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5mm
SUSPENSION LEVER Bontrager Drop Lock remote
MAX COMPATIBLE FORK TRAVEL 120mm (531mm axle-to-crown)
WHEEL FRONT Bontrager Kovee Pro 30 carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
WHEEL REAR Bontrager Kovee Pro 30 carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle
SKEWER REAR Bontrager Switch thru axle, removable lever
TIRE Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29x2.40''
*TIRE PART Size: S , M , L , XL
Bontrager TLR sealant, 6oz
Size: S , M , L , XL
Bontrager TLR valve, 50mm
RIM STRIP Bontrager TLR
MAX TIRE SIZE Frame: 29x2.40" Fork: See manufacturer
SHIFTER SRAM GX Eagle, 12 speed
REAR DERAILLEUR SRAM GX Eagle
*CRANK ARM Size: S , M , L
E*thirteen E*spec Race Carbon, 32T, 170mm length
Size: XL
E*thirteen E*spec Race Carbon, 32T, 175mm length
CASSETTE SRAM Eagle XG-1275, 10-52, 12 speed
CHAIN SRAM GX Eagle, 12 speed
MAX CHAINRING SIZE 32T with 52mm chainline, 36T with 55mm chainline
SADDLE Bontrager P3 Verse Elite, stainless steel rails, 145mm width
*SEATPOST Size: S
Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 340mm length
Size: M , L , XL
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 440mm length
HANDLEBAR Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width
GRIPS ESI Chunky
*STEM Size: S , M
Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length
Size: L , XL
Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length
HEADSET Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
BRAKE SRAM G2 RSC 4-piston hydraulic disc
*BRAKE ROTOR Size: S , M , L , XL
SRAM CenterLine, 6-bolt, round edge, 180mm
Size: S , M , L , XL
SRAM CenterLine, 6-bolt, round edge, 200mm
*E-BIKE SYSTEM Size: S , M , L , XL
Fazua Evation battery, 250Wh
Size: S , M , L , XL
Fazua Ride Trail 50 motor
Size: S , M , L , XL
Fazua Evation charger, 90-120V
CONTROLLER Fazua Remote bX
For information, please contact us via email order.dreambikeshop.com and via WhatsApp : +6281364524739
Or please visit the site : www.dreambikeshop.com
