Introduce:
Size:6-32mm
diameter:6mm,12mm,16mm,20mm,25mm
wall thickness:0.6-1.5mm
working spacing:0.06-0.4L/H

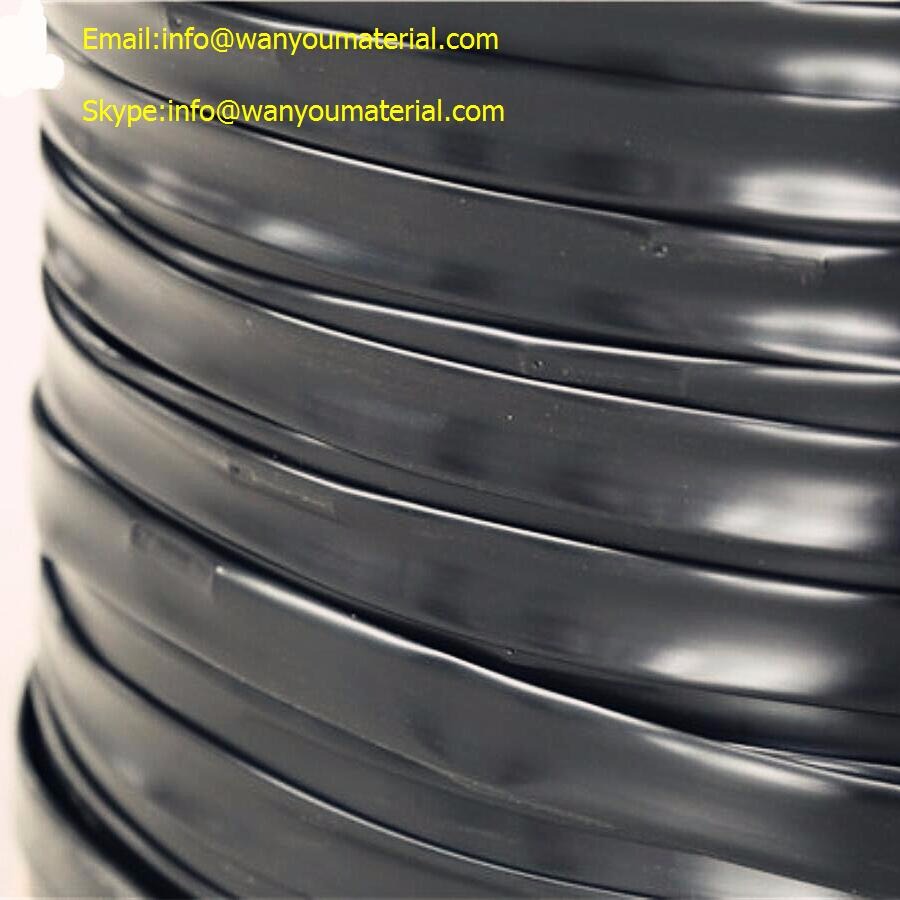

Drip irrigation pipe-Drip Pipe With Round Drippers



Specification:

Diameter

6mm,12mm,16mm

Wall thickness

0.6mm-1.2mm

Dripper spacing

200mm-2000mm

Working pressure

0.06-0.4Mpa

Flow rate

1.8-2.0-3.0-4.0-6.0L/H

Length/roll

500m,600m,800m,1000m



Application: various vegetables and crops in greenhouse and open field.

Effect:

1.Cutting down production costs.

2.Decreasing damage from insects.

3.Increasing productivity


Product Specifiaction:
OD And Telerance Nominal Pressure
Medium Heavy
Thickness(mm) Thickness(mm)
16 15.7+0.3 1.6 +0.3
20 19.7 +0.3 1.8 +0.3 2.3 +0.3
25 24.7 +0.3 1.8 +0.3 2.5 +0.3
32 31.7 +0.3 2.1 +0.3 2.7 +0.3
40 39.7 +0.3 2.5 +0.3 3.1 +0.3
50 49.7 +0.3 2.8 +0.3 3.4 +0.5
63 62.7 +0.3 3.0 +0.5 3.9 +0.6
65 75.2 +0.3 3.0 +0.5 3.9 +0.6
80NZ 82.3 +0.4 3.2 +0.5 4.2 +0.7
80AU 88.7 +0.4 3.5 +0.6 4.6 +0.7
100NZ 110.0 +0.4 4.3 +0.7 5.7 +0.8
100AU 114.1 +0.4 4.5 +0.7 5.9 +0.8
125 140.0 +0.4 5.5 +0.8 7.2 +0.9
150 160.0 +0.5 6.3 +0.8
